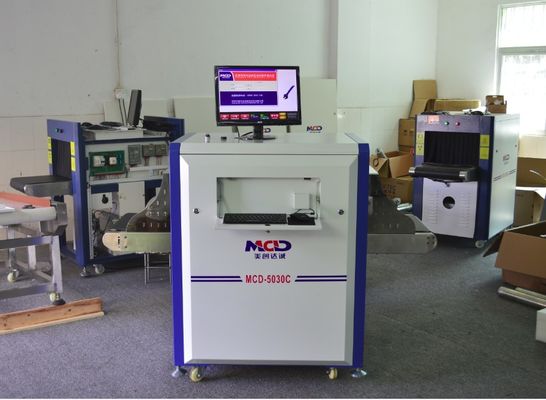

170kg Load Airport Baggage Scanners MCD-5030C 500W*300Hmm Tunnel Size
| Place of Origin | China |
|---|---|
| Brand Name | MCD |
| Certification | CE ISO |
| Model Number | 5030C |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | wooden case |
| Payment Terms | L/C, T/T |
| Supply Ability | 100sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | CE .ISO | Conveyor Height | 76cm |
|---|---|---|---|
| Conveyor Thickness | 2.0mm | Model | 5030C |
| Penetration | 34-38mm Thick | Net Weight | 250kg |
| Highlight | security screening equipment,airport metal detector |
||
Product Description
170kg Load Airport Baggage Scanners MCD-5030C 500w*300Hmm Tunnel Size
|
General Specification
|
|
|
Tunnel size
|
500 (W) * 300 (H) mm
|
|
Rated power
|
400W
|
|
Rated load
|
170kg (evenly distributed)
|
|
Conveyor height
|
76CM
|
|
Transmission mode
|
motor plus track belt
|
|
Conveyor thickness
|
2.0mm
|
|
Transport speed
|
standard 0.22M/S, adjustable speed
|
|
Radiation direction
|
bottom illumination
|
|
Penetration
|
34-38mm thick
|
|
Penetration resolution
|
34-40AWGΦ0.160mm
|
|
Line resolution
|
resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
|
|
Tube voltage / tube current
|
140-160KV/0.3mA
|
|
Leakage rate
|
<1.0μGy/h from the outer surface of the casing at 5CM
|
|
Single dose
|
radiation dose <1.5uGy
|
|
Net weight
|
250Kg
|
|
Product volume
|
168*83*122CM
|
|
Ray beam divergence angle
|
80 degrees
|
|
Equipment noise level
|
<55db
|
|
Pass rate
|
720 / h ~ 1500 / h
|
|
Leakage current
|
<0.5mA
|
|
Cooling
|
Sealed circulating oil cooled, 100
|
|
Work cycle
|
full cycle, need to be cooled
|
|
Rated voltage
|
AC 220V 50HZ (±10%)
|
|
Film Safety
|
ISO1600 Film Safety
|
|
Working temperature / humidity
|
-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
|
|
Storage temperature / humidity
|
-20 ° C ~ 60 ° C / 20% -95% (non-condensing)
|
Quick Details
Place of Origin:
China
Brand Name:
MCD
Model Number:
MCD-5030c
Detecting method:
x-ray bollom-illuminated
Tunnel size:
500w*300H mm
Conveyor speed:
0.22m/s adjustable speed
Conveyor max load:
170kg
Single inspection dosage:
<1.5uGy
System power:
220AVC/50Hz
Power wastage:
1.0kw(max)
Warranty:
1 year
Generate Direct:
Upward
Anode Voltage:
80Kv-160kv
Packaging & Delivery
Selling Units:
Single item
Single package size:
180X94X140 cm
Single gross weight:
328.0 kg
Package Type:
strong wooden packaging
