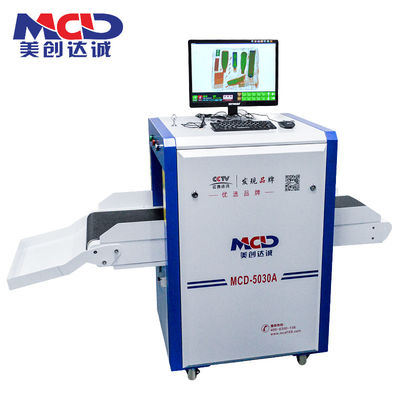

300W 100Kg Load 0.2m/s 14mm steel Metal Detector Machine
| Place of Origin | China |
|---|---|
| Brand Name | MCD |
| Certification | CE |
| Model Number | MCD-5030A |
| Minimum Order Quantity | 1 sets |
| Price | Negotiable |
| Packaging Details | wooden case package |
| Delivery Time | 5 work days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 300 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Tunnel Size | 500(W)*300(H)mm |
|---|---|---|---|
| Conveyor Speed | 0.2m/s | Maximum Leakage Radiation | <1uGy/h |
| Conveyor Belt Load | 100KG | Penetration | 14mm Steel Plate |
| Film Safety | ISO1600 Film Safety | Resolution | 0.1 Diameter Meter Wire |
| Power | 300W | Conveyor Height | 76cm |
| Noise Level | < 55dB | ||
| High Light | 100Kg Load Metal Detector Machine,14mm Steel Metal Detector Machine,300W X Ray Scanner Machine |
||
Product Description
100Kg Load Low Nosie Metal Detector Machine With X Ray Baggage Scanner For Airport/Factory/School/Station
General Specification
| Tunnel Size: | 500(W)×300(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 100kg |
| Conveyor Height: | 70cm |
| Wire Resolution: | 0.1mm metal line |
| Steel Penetration: | 14mm steel |
| Film Safety: | For ISO 1600 |
| Maximum leakage radiation : | <1µGY/h |
| Single inspection dosage: | < 1.5µGy |
X-ray Generator
1. Generate direct: Upward
2. Generate angle: 80 degree
3. Anode Voltage: 80Kv
4. Anode power: 0.6mA
5. Cooling / Duty Cycle: Oil Cooling /100%
Image System
1.X-ray Sensor: L-Shaped Photo diode Array (mono energetic) , 12bit Deep
2.Monitor High Resolution Color, LCD Accord, 17 inch
3.Detector: 2
4.Color display: full color
5.Image Processing:Edge enhancement, image strengthening, Image lightening,
reducing darkening, image returning, image retrieval.
6.Image Grey Level: 4096
7.Image Max Resolution: 1024 * 1280 pixel
8.Image Processing: 24bit for processing real time
9.Image storage: Storage 60000 pictures in real time
10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen
continuous observation
11. Multi-energetic distinguish objects:organic objects in orange,inorganic objects in blue,mixture in green
12.High-energy/low energy: switch from high energy to low energy
13.Assist to detect drug and explosive powder
Installation Data:
1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
2.Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
3.Operation Power:220AVC/(±10)50Hz±3Hz
4.Power Consumption: 0.3KW
5.Noise: <55 dB
Feature and Application:
X-rays through inspection,Which show object interior metal structure by LCD screen.Applied to factory inspection products and institutions of the security. Such as electronic factory, shoe factories, toy factories, court and station, as well as large activities handbag security.
