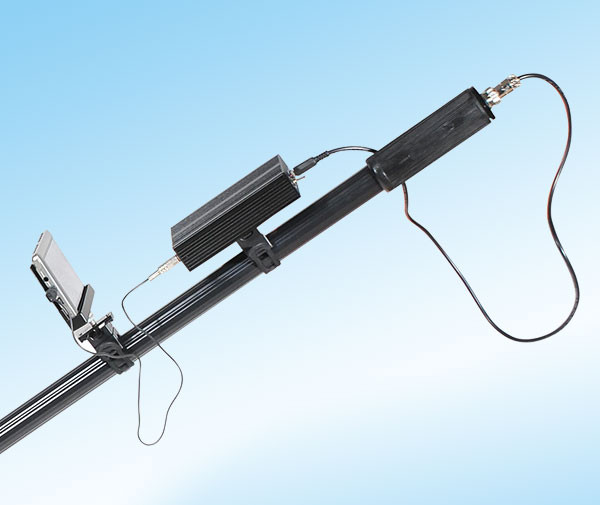

Durable Security Check Under Vehicle Inspection Camera 12 LEDs Light Source

  • Durable Security Check Under Vehicle Inspection Camera 12 LEDs Light Source
  • Durable Security Check Under Vehicle Inspection Camera 12 LEDs Light Source
Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-V7D
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Aluminum Box
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 2000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Camera Casing Stainless Steel 304 Lens Visible Angle 120 Degrees
Camera Adjustable Angle Arbitrary Angle Screen HD 5-inch LCD Screen
Camera Light Source 12 LEDs Rod Max Length 1.16m
Highlight

under vehicle camera

,

under vehicle inspection system
Leave a Message
Product Description

MCD-V7D Flexible Under Vehicle Search Scanner with Waterproof Camera

Quick Details

  •  Dimension: 23mmx50mm.
  •  Flexible pipe: 940mm
  •  Camera casing:Stainless steel 304
  •  Camera lens: Sapphire blue
  •  Storage way: DVR video recording function,can storage image
  •  Waterproof standard: IP68
  •  Rod Max length: 1.16m
  •  Working temperature:-10℃-50℃ 2.4G/5.8G Wireless Mini DVR ( 5 inch Screen )


Basic Information:

  •  Wireless Receiving : Built-in 2.4G/5.8G wireless receiving module
  •  Channel Switch Supports manual & automatic switch between 8 channels
  •  Antenna: Folding hidden external antenna assures excellent wireless receiving.
  •  Recording: Supports seamless cycle and continuous video from wired/wireless cameras
  •  Storage: Supports up to 32GB TF card
  •  Language: Supports multi-language
  •  Supports Power-saving Mode: automatic shutdown, automatic off-screen
  •  Automatic upgrade: Supports system automatic upgrade


Specification:


Items

             Value

Wireless
Receiving

Wireless freq.
1of 6 groups

2.4GHz–8
 channels

CH1: 2414MHz; CH2: 2432MHz;
CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz;
CH7: 2390MHz; CH8: 2370MHz

Within 5.8G-A
8 channels

CH1: 5865MHz; CH2: 5845MHz;
CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz;
CH7: 5745MHz; CH8: 5725MHz

Beyond 5.8G-B
8 channels

CH1: 5705MHz; CH2: 5685MHz;
CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz;
 CH7: 5925MHz; CH8: 5945MHz

Within 5.8G-C
 8 channels

CH1: 5733MHz; CH2: 5752MHz;
CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz;
CH7: 5847MHz; CH8: 5866MHz

Within 5.8G-D
7channels for FPV

CH1: 5740MHz; CH2: 5760MHz;
CH3: 5780MHz; CH4: 5800MHz.
CH5: 5820MHz; CH6: 5840MHz;
CH7: 5860MHz; CH8: SPI

Beyond 5.8G-E
7 channels for FPV

CH1: 5705MHz; CH2: 5685MHz;
CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz;
CH7: 5925MHz; CH8: SPI

Sensitivity

-92dB

AV IN

TV system

NTSC / PAL

Output voltage

3.6-4.2 V

AV OUT

TV system

NTSC / PAL

HD 5-inch
LCD screen

Active area

108mm(W)  X  64.8mm(H)

Resolution

800 X 480 Pixel

Luminance for LCM

200 cd/㎡

Video

Resolution

720*576 / 720*480

Video compress

MPEG-AVI    30fps

Play format

MPEG-AV



 Items

     Value

Audio

Subcarrier frequency

2.4GHz:6.0MHz; 5.8G-A/B/C:6.5MHz;
5.8G-D/E:6.0/6.5MHz

Earphone Frequency Range

20HZ-20KHz stereo

Earphone Output

Left: 20MW+ right 20mW [16O](suit to
 largest volume)

Speaker

1W


Format

JPG/JPEG

Storage

External SD card

TF card  1GB-32GB(optional)

32GB recording time

10-32 hours

1GB photos

15625pcs

Operating system

PC

Windows & Mac OS

Port

USB 2.0

Language

Multiple

Power

Voltage

DC 5V

Current(receiving mode)

660MA

Current( recording mode)

680MA

Current(recording with off-screen mode)

340MA

AC adapter

DC 5V  2A

Built-in battery

Li-battery 3200Mah

Standby time

Wireless record

≥9.5 hours(off-screen);  ≥5hours(on-screen)

Wired record

≥12 hours(off-screen);  ≥6hours(on-screen) *LED camera not included.

Size (L x W x H)

131mm x 86mm x 18mm

Weight(g)

205g
