High Penetration MCD-10080 X Ray Baggage Scanner Electric Drum Transmission Mode
| Place of Origin | China |
|---|---|
| Brand Name | MCD |
| Certification | ISO CE |
| Model Number | MCD-10080 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | wooden box |
| Delivery Time | 7-10 working days |
| Supply Ability | 50 sets/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tunnel Size | 1000 (W) * 800 (H) Mm | Rated Power | 500W |
|---|---|---|---|
| Rated Load | 250kg | Conveyor Height | 30cm |
| Transmission Mode | Electric Drum | Conveyor Thickness | 3.0mm |
| Highlight | security screening equipment,airport metal detector |
||
Product Description
High Penetration MCD-10080 X Ray Baggage Scanner Electric Drum Transmission Mode
|
General Specification
|
|
|
Tunnel size
|
1000 (W) * 800 (H) mm
|
|
Rated power
|
500W
|
|
Rated load
|
250kg (evenly distributed)
|
|
Conveyor height
|
30cm
|
|
Transmission mode
|
Electric drum
|
|
Conveyor thickness
|
3.0mm
|
|
Transport speed
|
standard 0.22M/S, adjustable speed
|
|
Radiation direction
|
Top-illuminated
|
|
Penetration
|
38mm thick
|
|
Penetration resolution
|
34AWGΦ0.160mm
|
|
Line resolution
|
resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
|
|
Tube voltage / tube current
|
140KV/0.5mA
|
|
Leakage rate
|
<1.0μGy/h from the outer surface of the casing at 5CM
|
|
Single dose
|
radiation dose <1.5uGy
|
|
Net weight
|
550Kg
|
|
Product volume
|
320*131*172(cm)
|
|
Ray beam divergence angle
|
80 degrees
|
|
Equipment noise level
|
<55db
|
|
Pass rate
|
720 / h ~ 1500 / h
|
|
Leakage current
|
<0.5mA
|
|
Cooling
|
Sealed circulating oil cooled, 100
|
|
Work cycle
|
full cycle, need to be cooled
|
|
Rated voltage
|
AC 220V 50HZ (±10%)
|
|
Film Safety
|
ISO1600 Film Safety
|
|
Working temperature / humidity
|
-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
|
|
Storage temperature / humidity
|
-20 ° C ~ 60 ° C / 20% -95% (non-condensing)
|
|
Image processing system
|
||||
|
1. X-ray sensor: L-shaped photodiode array detector, 16bit accuracy

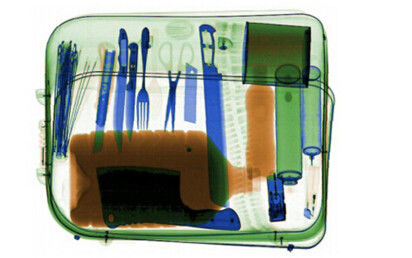

2. Multi-energy color: organic matter is displayed in orange, inorganic substance is displayed in blue, mixture is displayed in green, and unclear area is displayed in black. 3. High energy / low energy: two energy switching display 4. Hazardous materials assisted detection: assisting in the detection of dangerous goods such as some typical drug explosives 5. Independent console: easy to read, can be separated from the host by a maximum distance of 2.5m, 19-inch high- resolution display 6. Magnifying glass local zoom function, edge enhancement object contour edge is more clear, easy to penetrate, full screen imaging graphics without distortion 7. Adopt network port transmission technology to improve information transmission speed |
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
MCD
Type:
X ray screening baggage scanner
Warranty:
1 year
Tunnel Size:
1000(W)*800(H)mm
Conveyor Speed:
0.2 m/s
Convery Max Load:
200kg
Dose Per Inspection:
< 1.7 uGy/h
Resolution:
<0.101mm Copper Wire
Film Safety:
Guarantee ISO1600 Film
Penetration:
40mm Steel Plate
Product volume:
320*131*172cm
Packaging & Delivery
Selling Units:
Single item
Single package size:
216X140X190 cm
Single gross weight:
625.0 kg
Package Type:
wooden case package:
2350*1430*1930,800kg and the operation station 1100*745*1340,70kg
