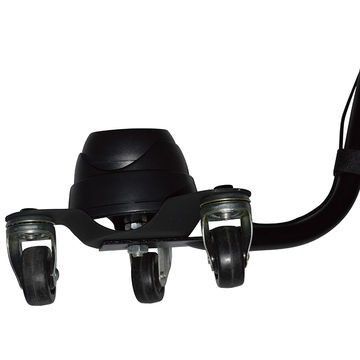

Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection

  • Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection
  • Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection
  • Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection
  • Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection
  • Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection
  • Professional Under Vehicle Inspection Camera 32GB TF Card Storage For Pipe Inspection
Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-V7D
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Aluminum Box
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 2000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 23mmx50mm Flexible Pipe 940mm
Camera Casing Stainless Steel 304 Lens Visible Angle 120 Degrees
Storage Way DVR Video Recording Function,can Storage Image Waterproof Standard IP68
Camera Adjustable Angle Arbitrary Angle Screen HD 5-inch LCD Screen
Camera Light Source 12 LEDs Rod Max Length 1.16m
Highlight

under vehicle camera

,

under vehicle inspection system
Leave a Message
Product Description

Low-Price Professional Pipe Inspection Camera MCD-V7D with High Definition CMOS Chip​

Quick Details:

  •  Dimension: 23mmx50mm.
  •  Flexible pipe: 940mm
  •  Camera casing:Stainless steel 304
  •  Camera lens: Sapphire blue
  •  Sensor dimension:1/4 inch
  •  Lens visible angle: 120 degrees
  •  Camera adjustable angle: Arbitrary angle
  •  Working temperature:-10℃-50℃ 2.4G/5.8G Wireless Mini DVR ( 5 inch Screen )


Basic Information:


  •  Recording: Supports seamless cycle and continuous video from wired/wireless cameras
  •  Photo :Supports function of taking pictures either from wired or wireless cameras.
  •  AV IN:TV-IN [NTSC / PAL]
  •  AV OUT:[NTSC / PAL].
  •  Battery: Built-in 3200mAh high capacity Li-battery, which continuous record over 10 hours
  •  Speaker: Built-in speaker of 1W
  •  Storage: Supports up to 32GB TF card
  •  Language: Supports multi-language
  •  Supports Power-saving Mode: automatic shutdown, automatic off-screen
  •  Automatic upgrade: Supports system automatic upgrade


Specification:


Items

             Value

Wireless
Receiving

Wireless freq.
1of 6 groups

2.4GHz–8
 channels

CH1: 2414MHz; CH2: 2432MHz;
CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz;
CH7: 2390MHz; CH8: 2370MHz

Within 5.8G-A
8 channels

CH1: 5865MHz; CH2: 5845MHz;
CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz;
CH7: 5745MHz; CH8: 5725MHz

Beyond 5.8G-B
8 channels

CH1: 5705MHz; CH2: 5685MHz;
CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz;
 CH7: 5925MHz; CH8: 5945MHz

Within 5.8G-C
 8 channels

CH1: 5733MHz; CH2: 5752MHz;
CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz;
CH7: 5847MHz; CH8: 5866MHz

Within 5.8G-D
7channels for FPV

CH1: 5740MHz; CH2: 5760MHz;
CH3: 5780MHz; CH4: 5800MHz.
CH5: 5820MHz; CH6: 5840MHz;
CH7: 5860MHz; CH8: SPI

Beyond 5.8G-E
7 channels for FPV

CH1: 5705MHz; CH2: 5685MHz;
CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz;
CH7: 5925MHz; CH8: SPI

Sensitivity

-92dB

AV IN

TV system

NTSC / PAL

Output voltage

3.6-4.2 V

AV OUT

TV system

NTSC / PAL

HD 5-inch
LCD screen

Active area

108mm(W)  X  64.8mm(H)

Resolution

800 X 480 Pixel

Luminance for LCM

200 cd/㎡

Video

Resolution

720*576 / 720*480

Video compress

MPEG-AVI    30fps

Play format

MPEG-AV



 Items

     Value

Audio

Subcarrier frequency

2.4GHz:6.0MHz; 5.8G-A/B/C:6.5MHz;
5.8G-D/E:6.0/6.5MHz

Earphone Frequency Range

20HZ-20KHz stereo

Earphone Output

Left: 20MW+ right 20mW [16O](suit to
 largest volume)

Speaker

1W


Format

JPG/JPEG

Storage

External SD card

TF card  1GB-32GB(optional)

32GB recording time

10-32 hours

1GB photos

15625pcs

Operating system

PC

Windows & Mac OS

Port

USB 2.0

Language

Multiple

Power

Voltage

DC 5V

Current(receiving mode)

660MA

Current( recording mode)

680MA

Current(recording with off-screen mode)

340MA

AC adapter

DC 5V  2A

Built-in battery

Li-battery 3200Mah

Standby time

Wireless record

≥9.5 hours(off-screen);  ≥5hours(on-screen)

Wired record

≥12 hours(off-screen);  ≥6hours(on-screen) *LED camera not included.

Size (L x W x H)

131mm x 86mm x 18mm

Weight(g)

205g
