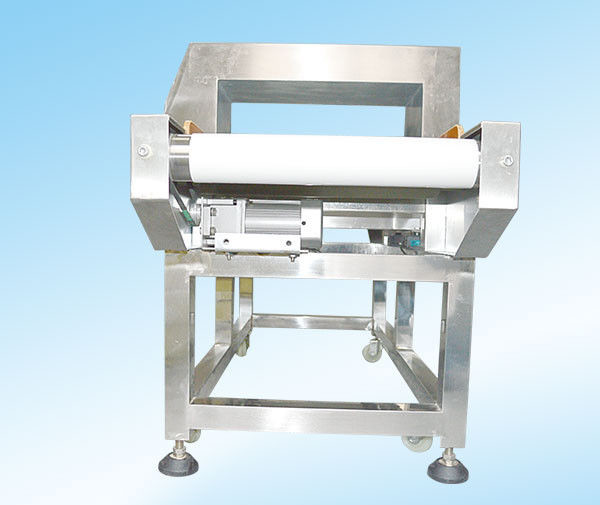

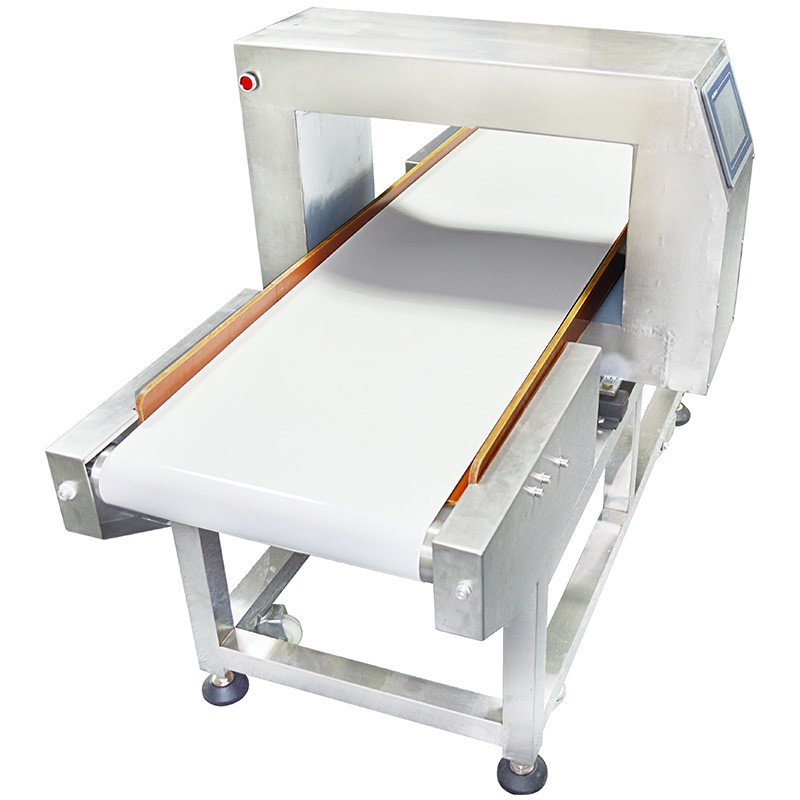

SUS304 MCD F500QF Conveyor Belt Metal Detector For Food Industry

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Parameters Detection Principle | Double Loop Electromagnetic Wave Detection | Detection Height | 7-50cm (customized) |
---|---|---|---|
Detecting Width | 40-120CM | Detecting Height | 10-50CM |
Volume | 2.15CBM | Material | SUS304 |
High Light | MCD F500QF Conveyor Belt Metal Detector,SUS304 Food Processing Metal Detector,SUS304 Conveyor Belt Metal Detector |
SUS304 MCD F500QF Conveyor Belt Metal Detector For Food Industry
Food Security Detection Conveyor Belt Metal Detector Machine MCD-F500QF
Frozen Vegetables Belt Conveyor Metal Detectors 40-120cm Detecting Width For Food Industry
MCD-F500QF metal detection machines used mainly for food and other requirements of high detection sensitivity of the industry, for the detection of inclusions or lost in the raw materials or products of Broken Needle, wire or lead, copper, aluminum, tin, stainless steel and other metal .
Performance:
1. Dual-loop design, can be detected separately iron and non-ferrous metal impurities, the high detection sensitivity can be separately adjusted to operate a very convenient and can detect food packaging aluminum platinum.
2. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
3. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
4. Can and weighing machines, sorting machines combination to form a pipeline automatically detects weighing.
5. Production line can be used to connect supporting the implementation of automatic detection pipeline.
6. Monitor the use of sound and light alarm, automatically exclude or shutdown, the operational use of extremely reliable and user-friendly.
7. Machine using stainless steel material, anti-corrosion, easy to clean (which can be required in accordance with the ordinary customers of steel stainless steel materials may be appropriate to reduce costs).
Detecting width | 40-120CM |
Detecting height | 10-50cm |
Detecting sensitivity | Fe ¢0.7mm-3.0mm SUS304 ¢1.5mm-5.0mm |
Sensitivity adjustment | 10 level adjustment |
Detecting adjustment | Manual and belt stop |
Belt Speed | 25m / min |
Power Supply | AC100-265V,50-60Hz Single phase |
Rated Output | (appr) 90W |
Dimension size | (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) (Demand can be made) |
